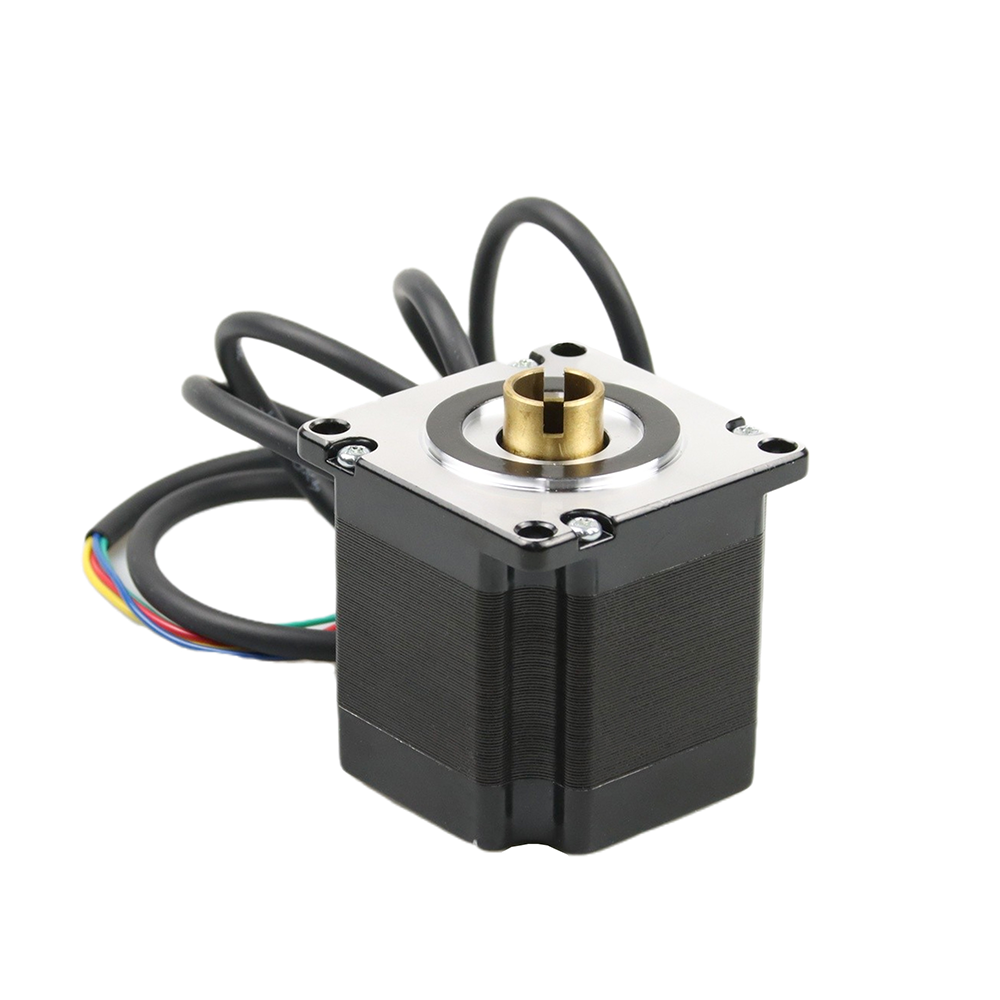

LeanMotor Nema 23 Stepper Motor Hollow Shaft Bipolar 1Nm 1.5A 57x57x56mm Stepping Motor 15mm Shaft for CNC Milling Engraving LM57HS56-3004-20SK15

Model: LM57HS56-3004-20SK15
Holding Torque: 100N.cm
Current / Phase: 1.5A
Rated Voltage: 3.2V
Phase Resistance: 3.2Ω
Phase Inductance: 11mH
Shaft Diameter: 5mm
Number of leads: 4-leads
Weight: 0.66kg
Availability:
Quantity:
Inquire Add to Basket

  • LM57HS56-3004-20SK15

  • LeanMotor

  • LM57HS56-3004-20SK15

This mini LM57HS56-3004-20SK15 nema 23 hollow shaft stepper motor with step angle 1.8deg and size 57x57x54mm. It has 4 wires, each phase draws 1.5A at 3.2V, with holding torque 100N.cm

Electrical Specification

  • Manufacturer Part Number: LM57HS56-3004-20SK15

  • Motor Type: 2 Phase Nema 23 Hollow Shaft Stepper Motor

  • Step Angle: 1.8 degree step motor

  • Holding Torque: 100N.cm

  • Rated Current/phase: 1.5A

  • Phase Resistance: 3.2ohms

  • Inductance: 5mH


Physical Specification

  • Frame Size: 57x57mm

  • Body Length: 54mm

  • Shaft Diameter: Φ5mm

  • Number of Leads: 4-leads

  • Lead Length: 1100mm

  • Weight: 660g

A+A-B+B-
BlackGreenRedBlue


nema 23 hollow shaft stepper motor

If this nema 23 hollow shaft stepper motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.




Different Shaft Types You May Need


download LM57HS56-3004-20SK15.pdf
