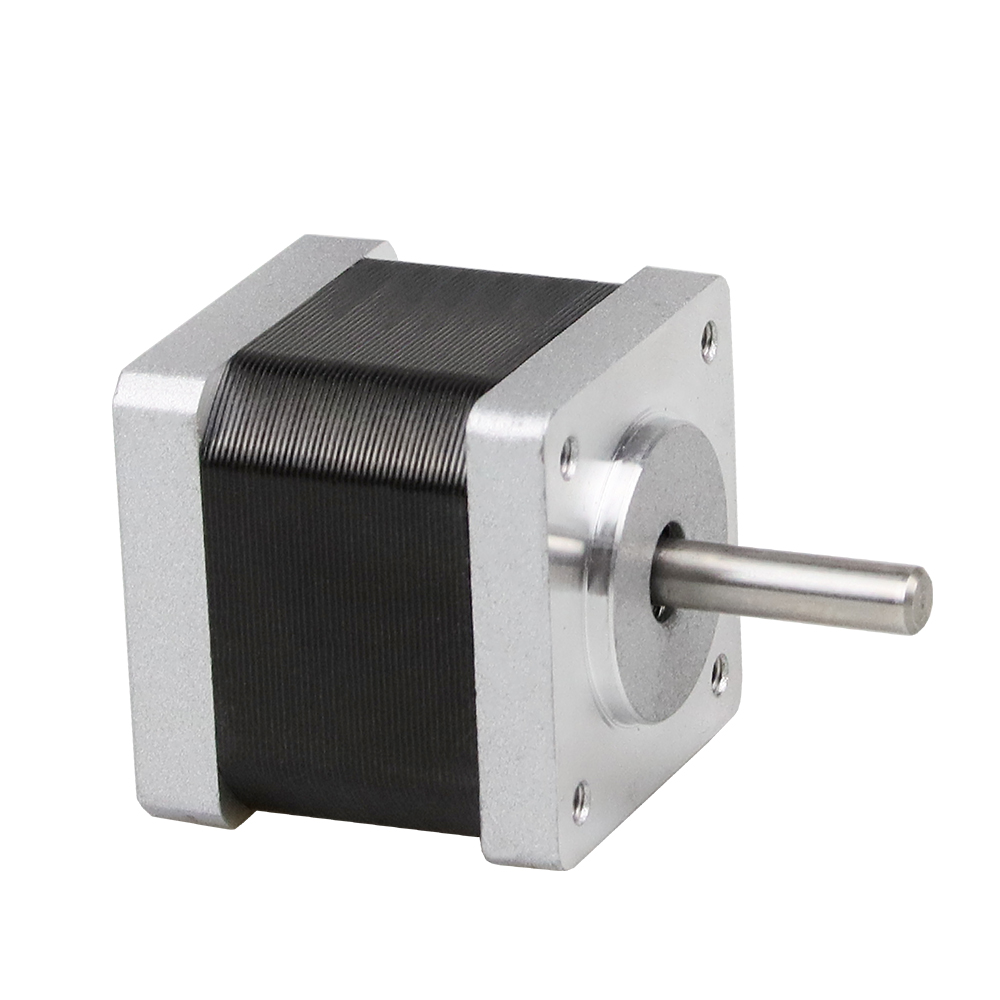

LM35HS42-1004 Nema 14 Stepping Motor Unipolar 1.8deg 20Ncm 1.0A 35x35x42mm 6 Wires

Model: LM35HS42-1004
Holding Torque: 2.0kg.cm
Current / Phase: 1.0A
Rated Voltage: 3.8V
Phase Resistance: 3.8Ω
Phase Inductance: 3.5mH
Shaft Diameter: 5mm with round shaft
Number of leads: 4-leads
Weight: 0.2kg
Model:
LM35HS42-1004
Availability:
Quantity:
Inquire Add to Basket

  • LM35HS42-1004

  • LeanMotor

  • LM35HS42-1004

This mini LM35HS42-1004 nema 14 35mm hybrid 2 phase stepper motor with step angle 1.8deg and size 35x35x42mm. It has 4 wires, each phase draws 1.0A at 3.8V, with holding torque 20Ncm.


Electrical Specification

  • Manufacturer Part Number: LM35HS42-1004

  • Motor Type: 2 Phase Hybrid Stepping Motor

  • Step Angle: 1.8 degree step motor

  • Holding Torque: 20Ncm

  • Rated Current/phase: 1.0A

  • Phase Resistance: 3.8ohms

  • Inductance: 3.5mH


Physical Specification

  • Frame Size: 35x35mm

  • Body Length: 42mm

  • Shaft Diameter: Φ5mm with round shaft

  • Number of Leads: 4-leads

  • Lead Length: 300mm

  • Weight: 200g


A+A-B+B-
BlackGreenRedBlue


nema 14 stepper motor

If this nema 14 stepper motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.




Different Shaft Types You May Need


download LM35HS42-1004.pdf
